Victron SmartSolar MPPT 250/100-Tr – SCC125110412 Solar Charge Controller
SCC125110412

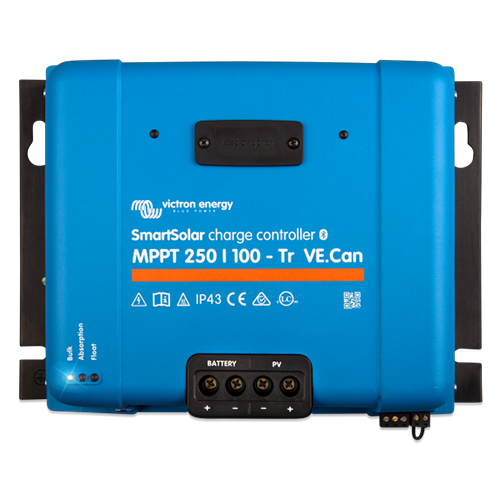

Victron SmartSolar MPPT 250/100-Tr – SCC125110412 Solar Charge Controller
The Victron SmartSolar MPPT 250/100-Tr (SCC125110412) is a high-efficiency 100A solar charge controller with up to 250V PV input, engineered to manage and optimize solar energy in large-scale off-grid and grid-tied battery systems.
Whether you're managing lithium or lead-acid batteries, the 250/100-Tr provides ultra-fast MPPT tracking, programmable logic, and flexible remote access via VictronConnect or the VRM Portal. Designed for demanding solar projects, this unit helps maximize energy harvest and extend battery lifespan.
Key Benefits
250V Max PV Input: Supports long solar string lengths, reducing cabling complexity and cost.
100A Charge Output: Fast-charging capacity ideal for large battery banks or high-demand systems.
Multi-System Voltage Support: Automatically detects and charges 12V, 24V, and 48V battery systems.
Bluetooth Built-In: Connects wirelessly to smartphones or tablets via the VictronConnect app.
Flexible Installation: Tr (terminal) version allows hardwired PV and battery connections in system enclosures.
Special Technology
Ultra-Fast MPPT Algorithm: Continuously adjusts to changing solar conditions to harvest maximum energy—even in shade.
VE.Direct & Remote Interfaces: Compatible with GX devices, BMS units, and external monitors via VE.Direct and relay outputs.
BatteryLife Algorithm: Extends battery life by preventing undercharging and over-discharging cycles.
Programmable Logic: Configure charging profiles and relay events via PC or app.
Comprehensive Safety Protections: Includes PV short circuit, reverse polarity, over-temperature, and overcurrent safeguards.
Warranty
The Victron SmartSolar MPPT 250/100-Tr (SCC125110412) is backed by a 5-year limited warranty, offering confidence in durability and performance from a globally trusted solar brand.
Best Use
Off-Grid Solar Installations: Charge large 12V/24V/48V battery banks in remote cabins, farms, or telecom setups.
Hybrid & Backup Power Systems: Works with inverters and battery banks for full solar + storage systems.
Commercial & Agricultural Applications: Built to power larger loads or energy storage solutions across multiple industries.
Mobile & Marine Power Systems: Efficient energy management for large RVs, yachts, or portable field systems.
Specifications Table
| Specification | Data |
|---|---|
| Model | SCC125110412 |
| Product Name | SmartSolar MPPT 250/100-Tr |
| Nominal Battery Voltage | 12V / 24V / 48V Auto-Select |
| Max PV Input Voltage (Voc) | 250V DC |
| Max Charge Current | 100 Amps |
| Max PV Input Power (12V) | 1,450W |
| Max PV Input Power (24V) | 2,900W |
| Max PV Input Power (48V) | 5,800W |
| MPPT Efficiency | Up to 99% |
| PV Connections | Screw Terminals (Tr version) |
| Communication Ports | VE.Direct, Remote On/Off, Relay |
| Bluetooth | Built-In |
| Cooling | Passive with optional fan assist |
| Dimensions (L × W × H) | 11.6 × 11.6 × 4.1 inches |
| Weight | ~9.9 lbs |
| Enclosure Rating | IP43 (electronics), IP22 (connections) |
| Certifications | CE, RoHS, UL Pending |
| Warranty | 5-Year Limited Warranty |
About Victron Energy:
Victron Energy, headquartered in the Netherlands, is a globally recognized leader in off-grid and battery-based power solutions.
The company specializes in high-efficiency inverters, solar charge controllers, battery monitors, and smart charging systems. Known for rugged design, field-proven reliability, and innovative connectivity features like Bluetooth Smart, Victron products are trusted in marine, automotive, RV, and renewable energy systems worldwide. Their commitment to performance, durability, and flexibility ensures optimal energy management for professional and personal energy needs.
