Schneider Electric Homeline 25A 2-Pole Circuit Breaker HOM225
HOM225
Schneider Electric Homeline 25A 2-Pole Circuit Breaker HOM225

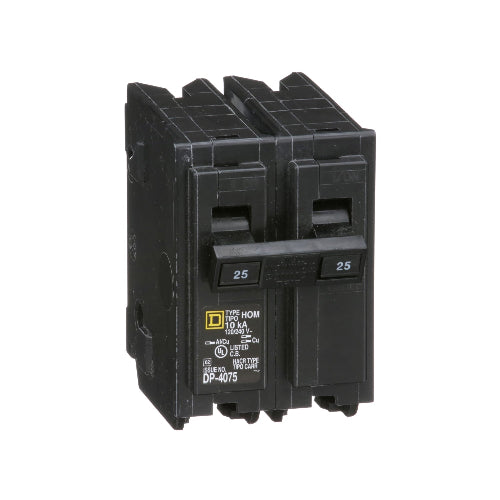

The Schneider Electric HOM225 is a 25A, 2-pole circuit breaker from the Homeline series, designed for residential load centers operating at 120/240V AC. With a 10 kA interrupting rating and plug-in mounting, this breaker provides reliable protection for branch circuits and is HACR rated for HVAC loads.
Key Benefits
Reliable Protection: 25A rated with 10 kA interrupting capacity for effective overload and fault defense.
Quick Installation: Plug-in mounting for fast integration into Homeline load centers.
HACR Rated: Approved for use with HVAC equipment such as air conditioners and refrigerators.
Compact Design: Occupies two spaces and fits securely with clamp terminals for up to two wires per pole.
Special Technology
Dual Wire Capability: Clamp terminals support 1× AWG 14–8 Al/Cu and 2× AWG 14–10 Cu wires.
Environmentally Responsible: PVC-free packaging, REACh and RoHS compliant, and part of Schneider's circularity initiative.
Warranty
Lifetime limited warranty provided by Schneider Electric.
Best Uses
Dedicated 240V Circuits: Ideal for dedicated circuits such as water heaters and small HVAC equipment.
Residential Panels: Compatible with all Homeline load centers in new builds or upgrades.
Eco-Friendly Projects: Suitable for installations seeking sustainable and compliant components.
Specifications Table
| Specification | Data |
|---|---|
| Model | HOM225 |
| Series | Homeline |
| Breaker Type | Standard |
| Current Rating | 25 Amps |
| Voltage Rating | 120/240 VAC |
| Number of Poles | 2 |
| Interrupting Rating | 10 kA |
| Mounting Type | Plug-in |
| Terminal Type | Clamp (supports 2 wires per terminal) |
| Wire Size | 1× AWG 14–8 Cu/Al, 2× AWG 14–10 Cu |
| Tightening Torque | 35.4 lbf·in |
| Ambient Operating Temperature | 104°F (40°C) |
| Dimensions (H × W × D) | 3.13 × 2.00 × 2.98 in |
| Weight | 0.66 lb |
| GTIN | 785901065487 |
| Country of Origin | Mexico |
| Certifications | UL Listed, HACR Rated |
| Environmental Compliance | RoHS, REACh |
| Warranty | Lifetime |
