Enphase IQ8H-240 Microinverter IQ8H-240-72-2-US
IQ8H-240-72-2-US
Enphase IQ8H-240 Microinverter IQ8H-240-72-2-US

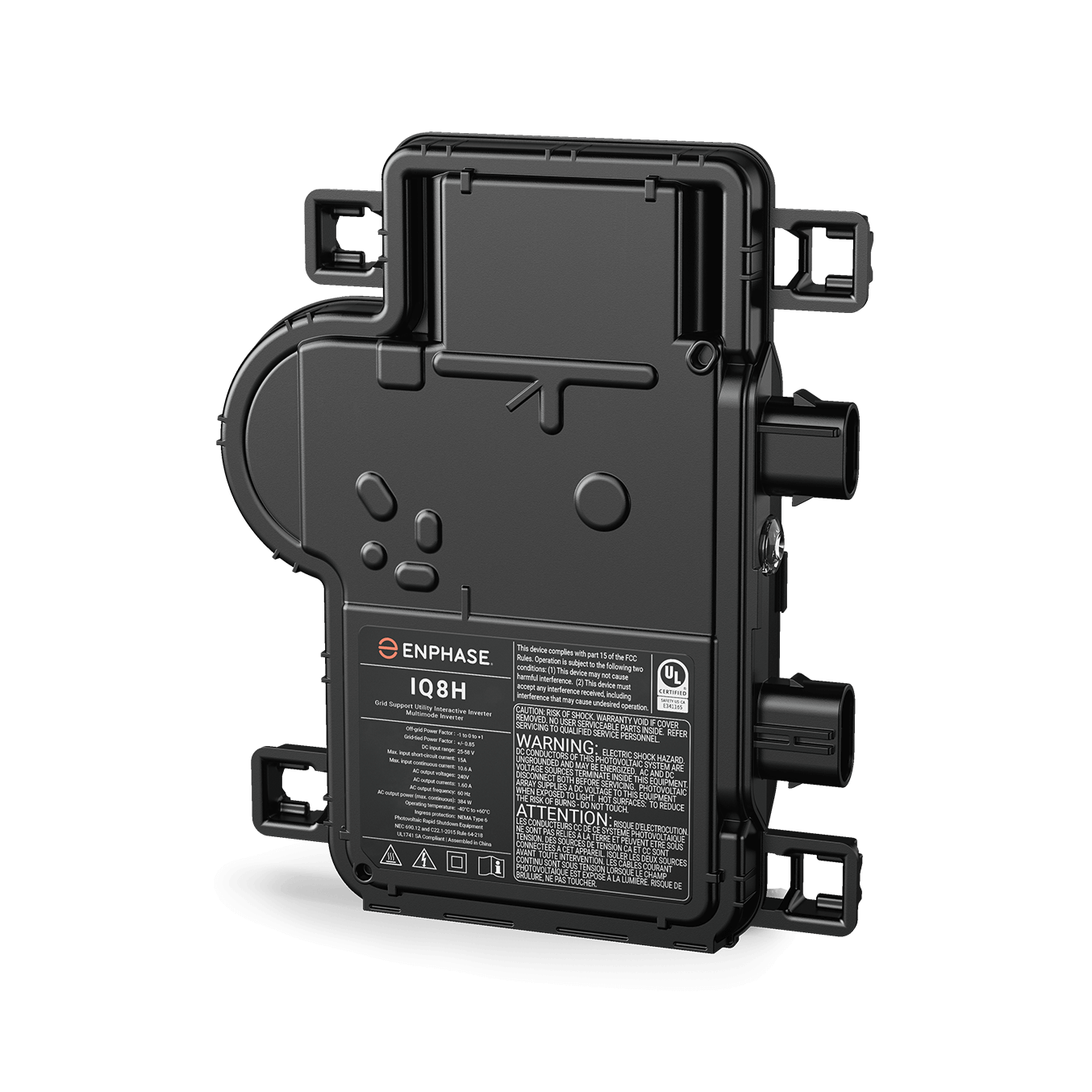

The Enphase IQ8H-240-72-2-US is a high-output microinverter engineered to support solar panels up to 540W. With 384W of continuous output at 240V, it is designed to maximize production from 72-cell and equivalent high-wattage modules. The IQ8H seamlessly integrates with the full Enphase Energy System, including IQ Gateway, IQ Combiner, and IQ Batteries. Featuring grid-forming capability, built-in rapid shutdown, and smart grid compliance, the IQ8H is a powerful, future-ready solution for residential and small commercial solar installations.
Key Benefits
384W AC Output: Delivers industry-leading performance for high-wattage solar modules.
Compatible with 72-Cell Modules: Ideal for 440W to 540W panels used in modern installations.
Grid-Forming Ready: Supports backup functionality when paired with IQ Batteries.
NEC-Compliant Rapid Shutdown: Built-in for safety and code compliance without external RSD hardware.
Real-Time Monitoring: Access system performance through the Enphase App and Enlighten platform.
Special Technology
MPPT Voltage Range: Advanced tracking from 38V to 45V ensures optimal power production.
IEEE 1547 Grid Support: Enables volt/VAR, frequency/watt, and ride-through functions.
PLC Communication: Sends module-level data through the power line to the IQ Gateway.
Software-Defined Updates: Receives remote firmware upgrades to stay current with grid and safety standards.
NEMA 6 Enclosure: Sealed outdoor-rated housing protects the unit in all weather conditions.
Warranty
The Enphase IQ8H-240-72-2-US is backed by a 25-year limited warranty when installed by an Enphase Certified Installer, providing long-term peace of mind and performance assurance.
Best Use
High-Efficiency Residential Systems: Ideal for homeowners using premium 72-cell panels up to 540W.
Battery-Ready Installations: Integrates with IQ Batteries for energy storage and off-grid capabilities.
Smart Grid-Compliant Arrays: Designed to meet all interconnection and safety regulations.
Performance-Focused Installations: Delivers strong output in high-heat, low-light, and partially shaded conditions.
Specifications Table
| Specification | Data |
|---|---|
| Model | IQ8H-240-72-2-US |
| Continuous AC Output Power | 384W |
| Nominal AC Voltage | 240V Split-Phase |
| Compatible Panel Wattage | 440W – 540W |
| Recommended Cell Type | 72-Cell or Equivalent Modules |
| MPPT Voltage Range | 38 – 45V |
| DC Input Voltage Range | 16 – 60V |
| CEC Weighted Efficiency | 97.0% |
| Rapid Shutdown | Integrated (NEC 690.12 Compliant) |
| Communication | PLC to IQ Gateway |
| Monitoring | Enphase Enlighten via IQ Gateway |
| Enclosure Rating | NEMA 6 (Outdoor Rated) |
| Dimensions (L × W × H) | 8.3 × 6.9 × 1.2 in |
| Weight | ~2.38 lbs |
| Certifications | UL 1741-SA, IEEE 1547 |
| Warranty | 25-Year Limited Warranty |
