Enphase IQ Combiner 6C X-IQ-AM1-240-6C
X-IQ-AM1-240-6C
Enphase IQ Combiner 6C X-IQ-AM1-240-6C
PLEASE NOTE:
|
Enphase certification is required for system commissioning. Must agree before purchase. Not certified - visit Enphase University. |

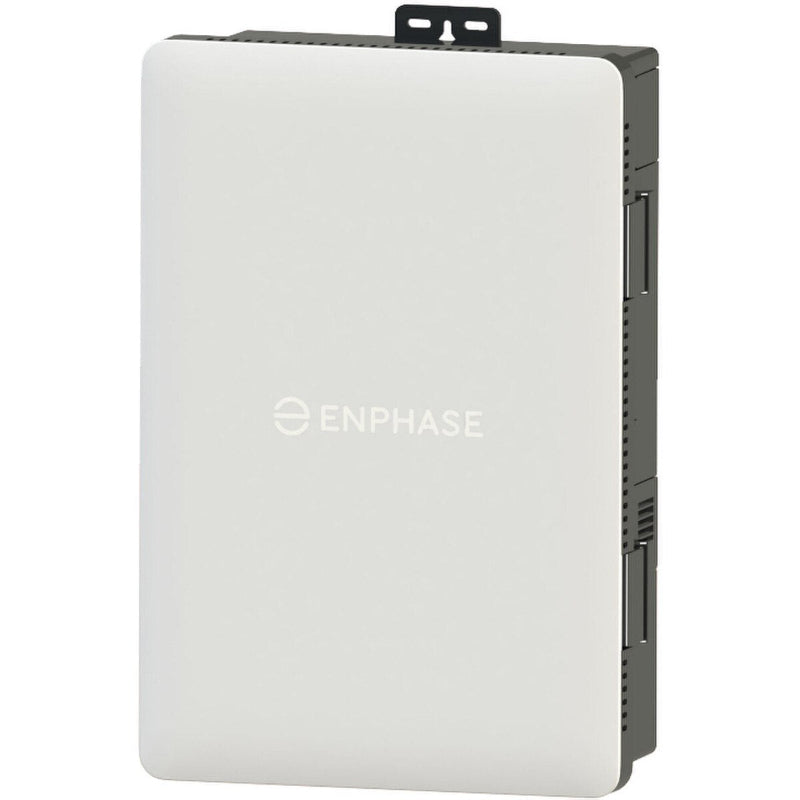

The Enphase IQ Combiner 6C (X-IQ-AM1-240-6C) is an advanced all-in-one interconnection solution that integrates IQ Gateway, monitoring, rapid shutdown, and load control. It supports IQ Microinverters, IQ Battery 10C, EV chargers, and the IQ Meter Collar, enabling simplified, code-compliant residential solar-plus-storage installations with built-in monitoring and networking options.
Key Benefits
Integrated Monitoring: Includes IQ Gateway with revenue-grade production and battery metering, plus EV charger monitoring support.
Pre-Wired CTs: Integrated current transformers for PV, battery, and load monitoring reduce install time and complexity.
Rapid Shutdown Ready: Ships with a UL 489 certified 60A PV breaker usable as a rapid shutdown initiator for outdoor installs.
Flexible Breaker Layout: Supports up to 8 double-pole breakers: 4 PV branches, 2 batteries, 1 EV charger, and 1 load controller.
Multiple Network Options: Includes Enphase Mobile Connect (CELLMODEM-07-NA) with 5-year data plan, plus Wi-Fi, Ethernet, and Bluetooth connectivity.
Special Technology
DER Busbar: 200 A busbar supports batteries, PV, EV, and load controller branches for flexible energy routing.
Forced-Air Cooling: Integrated fans and solar shield enable operation up to 115°F (46°C).
Aux Contacts: 2 auxiliary relays for grid/load control, one on combiner board and one on IQ Gateway.
Warranty
15-year limited warranty on IQ Combiner 6C; 5 years on included Mobile Connect cellular modem.
Best Uses
Residential PV + Storage: Centralized hub for PV, battery, EV, and monitoring in a compact form factor.
Whole Home Backup: Compatible with IQ System Controller 3/3M and Meter Collar for full-home energy control.
Smart Grid Support: DER relay and monitoring support for utility integration, SoC recovery, and dynamic load control.
Specifications Table
| Specification | Data |
|---|---|
| Model | X-IQ-AM1-240-6C |
| Nominal Voltage | 240 V~ ±20% |
| Frequency Range | 60 Hz (56–63 Hz) |
| Max PV Current | 64 A (80 A at ≤100°F ambient) |
| Max Battery Current | 2 × 59 A |
| Max EV Charger Current | 1 × 48 A |
| Max DER Current | 160 A |
| Max Load Controller Current | 48 A (64 A at ≤100°F) |
| Max Backfeed Current | 100 A |
| Max Breaker Ratings | PV: 20 A, Battery: 80 A, EV: 60 A, Load Ctrl: 80 A |
| PV Aggregate Breaker | 60 A pre-installed (upgradeable to 100 A) |
| Enclosure Rating | NEMA 3R (Outdoor) |
| Cooling | Forced air with solar shield |
| Dimensions (H × W × D) | 26.8 × 18.1 × 8.7 in |
| Weight | 40 lbs |
| Max Altitude | 9,842 ft (3,000 m) |
| Breaker Slots | 8 × double-pole (4 PV, 2 battery, 1 EV, 1 load) |
| Monitoring | Production, storage, load, and EV (via CTs) |
| Included Modem | CELLMODEM-07-NA (5-year plan) |
| Communication | Wi-Fi, Ethernet, Bluetooth, RS-485, USB, PLC |
| Compliance | UL 1741, FCC Part 15, ANSI C12.20, IEEE 2030.5 |
| Warranty | 15 Years (Combiner), 5 Years (Modem) |
About Enphase Energy:
Enphase Energy is a global leader in solar energy solutions, renowned for its microinverter technology that maximizes solar panel performance and reliability. Enphase offers integrated systems that combine solar, storage, and energy management for optimized home energy use.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 15-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: Is the X-IQ-AM1-240-6C compatible with my Enphase system?
Yes, the IQ System Controller 3 is designed to work with Enphase IQ microinverters and IQ Batteries. Your installer will ensure compatibility with your specific setup.
Q: Do I need a battery with the IQ System Controller 3?
No, a battery is not required. However, pairing the controller with IQ Batteries enables backup functionality, allowing your system to power essential loads during grid outages.
Q: How do I monitor the performance of my Enphase system with the IQ Controller?
The IQ System Controller 3 integrates with the Enphase App (formerly Enlighten), allowing real-time monitoring of energy usage, production, and battery status.
Q: What happens during a power outage?
If your system includes IQ Batteries and backup circuits, the IQ Controller automatically isolates your home from the grid and powers designated loads using stored energy. Without batteries, the system shuts down for safety during outages.
Q: Does the IQ Controller 3 require maintenance?
The unit is designed for low maintenance. It’s recommended to periodically check for system notifications in the Enphase App and ensure that vents are free of debris.
Q: What is the voltage rating for the X-IQ-AM1-240-6C?
It is rated for split-phase 240V AC (120/240V). Consult the official Enphase documentation for detailed specifications and wiring information.
Q: What communication protocols does the controller use?
The controller communicates using Zigbee with Enphase components and supports Ethernet or Wi-Fi for system monitoring via the Enphase App.
