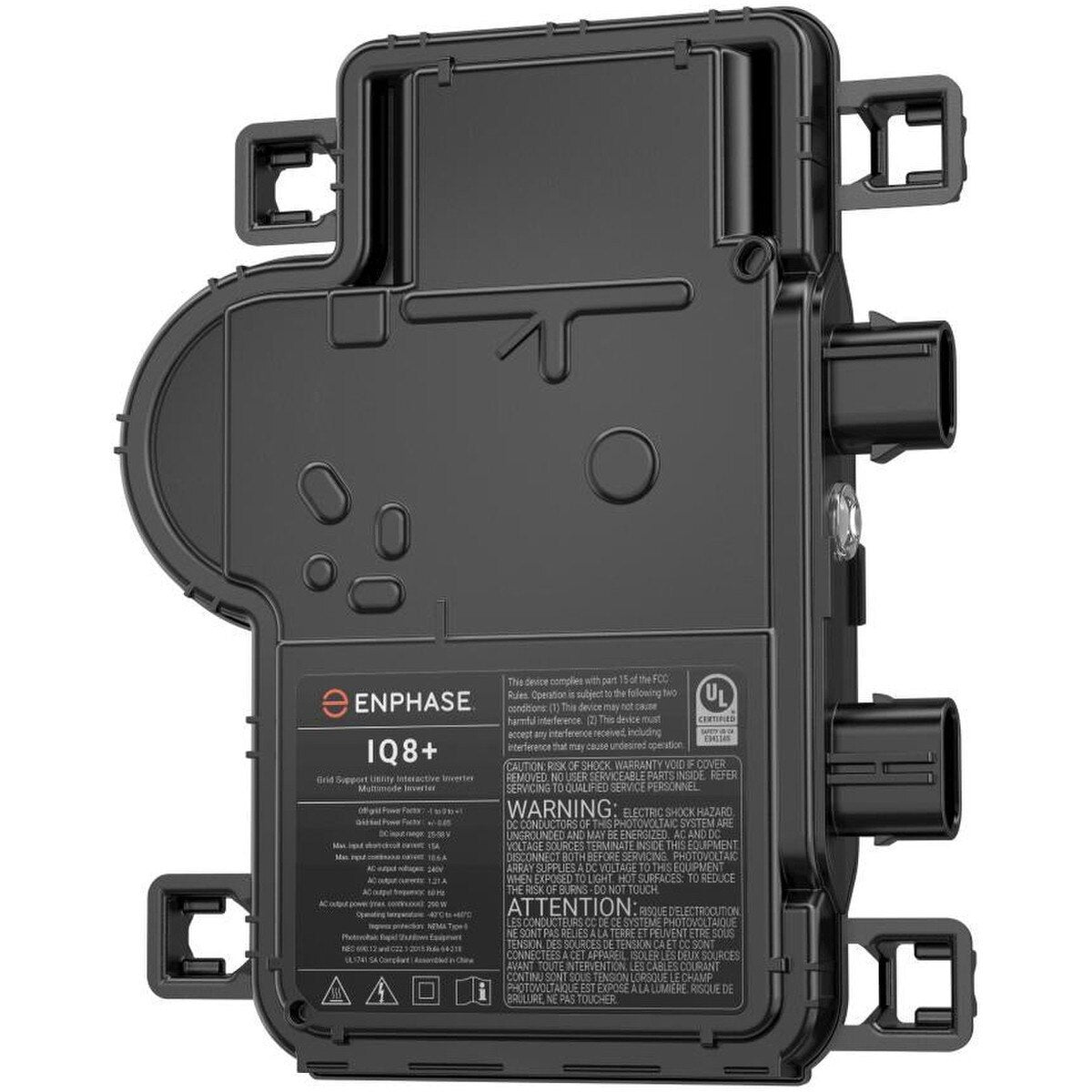

Enphase IQ8+ MC4 Split-Phase Microinverter IQ8PLUS-72-M-US-2545
MPN No: IQ8PLUS-72-M-US-2545
Expected ship date Jun 16 - 23
In Stock
$154.64
Enphase IQ8+ MC4 Split-Phase Microinverter IQ8PLUS-72-M-US-2545
Enphase IQ8+ MC4 Split-Phase Microinverter IQ8PLUS-72-M-US-2545
Regular price
$154.64
303 IN STOCK
Enphase IQ8+ MC4 Split-Phase Microinverter IQ8PLUS-72-M-US-2545
Enphase IQ8+ MC4 Split-Phase Microinverter IQ8PLUS-72-M-US-2545
Available
MPN No: IQ8PLUS-72-M-US-2545
Regular price
$154.64
Expected ship date Jun 16 - 23
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$154.64
Enphase IQ8+ MC4 Split-Phase Microinverter IQ8PLUS-72-M-US-2545
MPN No:
IQ8PLUS-72-M-US-2545
Expected ship date Jun 16 - 23
Enphase IQ8+ MC4 Split-Phase Microinverter IQ8PLUS-72-M-US-2545
The Enphase IQ8PLUS-72-M-US-2545 Microinverter is part of the advanced IQ8 Series, designed to deliver efficient module-level power conversion with microgrid-forming capability. Built for modern residential solar systems, this microinverter supports both grid-tied and backup-ready applications while providing high reliability and optimized energy harvest.
Featuring integrated MC4 connectors and split-phase power conversion, the IQ8PLUS enables fast installation and seamless integration with the Enphase Energy System, including IQ Gateway, IQ Battery, and the Enphase App for monitoring and control.
Product Note: This item is identified via serial #'s beginning with 53XXXX or 54XXXX where XXXX < 2545, and was manufactured prior to Nov 10, 2025. Therefore, this item may NOT be applicable to all Financial AVLs starting Jan 1, 2026.
Key Technology
-
IQ8 Microgrid-Forming Technology
Supports both grid-tied and off-grid operation when paired with compatible Enphase system components. -
300 VA Peak Output Power
Delivers efficient power conversion with 290 VA continuous output for residential solar systems. -
High Efficiency Performance
Achieves up to 97.6% peak efficiency for improved energy yield. -
Integrated MC4 Connectors
Enables quick, secure, and plug-and-play installation. -
Optimized Module Compatibility
Supports PV modules in the 235W – 440W range for flexible system design. -
Advanced Reliability
Tested for over one million hours with a durable, double-insulated enclosure for long-term performance.
Best Uses
-
Residential Solar Systems
Ideal for rooftop installations requiring module-level optimization and monitoring. -
Backup-Ready Installations
Supports resilient solar systems when paired with Enphase storage and control solutions. -
High-Efficiency Rooftop Projects
Designed for modern PV modules and compact system layouts.
Warranty
- Manufacturer: Enphase Energy
- Warranty: Up to 25-Year Limited Warranty
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Enphase Energy |
| Model | IQ8PLUS-72-M-US-2545 |
| Product Type | Microinverter |
| Peak Output Power | 300 VA |
| Maximum Continuous Output Power | 290 VA |
| Nominal Voltage | 240V Split Phase |
| Voltage Range | 211 – 264 V |
| Maximum Continuous Output Current | 1.21 A |
| Module Pairing Range | 235W – 440W |
| MPPT Voltage Range | 29 – 45 V |
| Operating Range | 25 – 58 V |
| Start Voltage | 30 V |
| Maximum Input DC Voltage | 60 V |
| Maximum Input Current | 15 A |
| Peak Efficiency | 97.6% |
| CEC Weighted Efficiency | 97% |
| DC Connector Type | Stäubli MC4 |
| Dimensions | 8.3 × 6.9 × 1.2 in |
| Weight | 2.43 lb |
| Cooling | Natural Convection – No Fans |
| Enclosure | Class II Double-Insulated, Corrosion-Resistant Polymeric |
| Environmental Rating | NEMA Type 6, Outdoor |
| Operating Temperature | -40°C to +60°C |
| Humidity | 4% to 100% Condensing |
| Compliance | UL 1741-SB, IEEE 1547, UL 62109-1, NEC 2014/2017/2020 |
| Rapid Shutdown | UL Listed PV Rapid Shutdown Equipment |
About Enphase Energy:
Enphase Energy is a global leader in solar microinverter technology and energy management systems. Its IQ Series products deliver intelligent module-level performance, high reliability, and seamless integration across solar and storage platforms.
Efficient and Reliable Microinverter for Residential Solar
The Enphase IQ8PLUS-72-M-US-2545 offers high efficiency, flexible installation, and advanced grid support, making it a dependable solution for modern residential solar systems.
